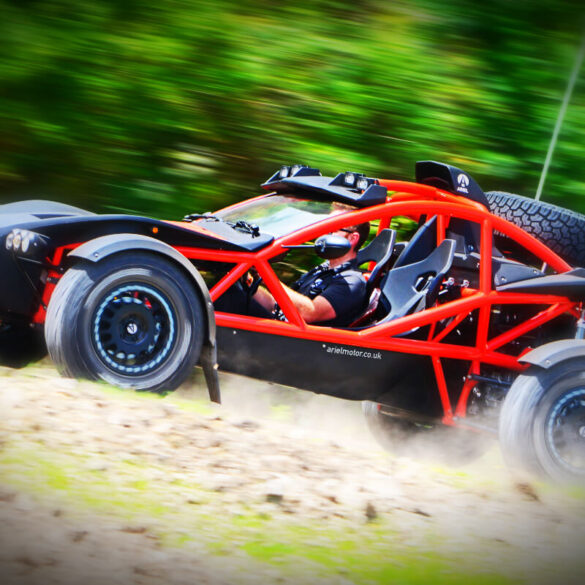

UK-based Ariel, the company that brought us the Atom, has launched its latest go-anywhere sports car – the all-new Ariel Nomad 2.
The second-generation Nomad is aptly named Nomad 2 and along with Atom is an example of Ariel’s core values of serious fun, with form following function.
Known as Atom’s ‘Mucky Brother’ the Nomad’s off-road capability is immediately evident with exposed outboard suspension, long travel dampers, damage resistant body panels, raised air intake and a hose out interior.
Nomad 2 is an all-new design from the ground up, featuring only three carry-over parts.
Designed and engineered in-house, it features an all-new chassis, suspension, steering and brakes, electronics, all-new bodywork with significant aerodynamic improvements, plus new seating and instrumentation, together with a host of design improvements and changes.
With an open design brief to improve the car wherever possible, the Nomad 2 represents a major step forward in the evolution of the Nomad and Ariel itself.
Ariel worked to broaden the accessibility of the car’s performance, enabling customers to confidently explore the full extent of its capabilities.
With this in mind, it features fully selectable driver aids including a three-stage engine map controller, driver adjustable launch and traction control, and an adjustable ABS system, developed to work on- and off-road.
All adjustments can be made on the move, leaving the driver in complete control of settings.
Tested in the harshest environments from racetracks to rally stages, in blistering heat, monsoon rain, floods, mud and snow, the Nomad 2 has undergone Ariel’s most severe test regime to date.
At the heart of the Nomad 2 is the new Ford 2.3-litre, four-cylinder, direct injection, 16-valve, twin spool turbocharged engine.
Derived from the Focus ST the engine, it has been tuned by Ariel to give up to 227kW with an astonishing 518Nm of torque.
Mapped by Ariel to on and off-road requirements, Nomad 2 has the option of a switchable ECU allowing drivers to choose from three different engine maps, giving 194kW/385Nm, 225kW/451Nm, or 227/518Nm.
To achieve ultimate performance off-road, as well as on it, the highest setting delivers considerably more torque throughout the rev range.
Driving through a six-speed manual gearbox with limited slip differential, the Nomad 2 has passenger car driveability on-road but massive ability off-road.
With the option of a six-speed paddle change Quaife sequential gearbox, derived from the Atom 4 and Atom 4R, plus a hydraulic handbrake, the Nomad 2 takes Ariel’s ultimate performance ethos to a new pinnacle for off-road, high-performance driving.
The air intake system incorporates an encapsulated air-to-air intercooler, protected from off-road debris, together with a dual engine air filtration system to cope with adverse operating conditions off road.
Clean air is ducted from the roof intake to the intercooler and separately to the engine intake system where a pre-filter removes any debris before a three-layer filter removes any finer particles.
Any dirt or moisture collected is collected in a sump within the system and then released via a vacuator valve.
A further WRC specification filter is available for ultra-severe conditions.
Designed to meet EUCSSTA (European Community Small Series Type Approval) noise and emission standards as well as racetrack noise levels, the 75mm diameter stainless system exhaust system features a ceramic honeycomb, high palladium/rhodium content catalytic converter, and a twin outlet stainless silencer.
A larger radiator, two and a half times the size of that in the original Nomad, is fitted to extend capability into yet harsher and hotter environments.
With longer journeys into the unknown in mind the fuel capacity has also been increased to 70 litres, a 40 per cent improvement on the previous model, delivering a range of more than 885km.
The all-new chassis sees the wheelbase lengthened (+48mm) and track increased (+50mm) enhancing high speed stability off-road.
An approach angle (48 degrees) and departure angle (64 degrees) far exceed regular off-roaders, meaning the Nomad 2 has the capability and the performance to tackle any terrain.
Featuring double, unequal length, wishbones with direct-acting outboard dampers, Nomad 2 has increased suspension travel over the original Nomad as well as totally revised suspension and steering geometry.
Based on 10 years of continual development from Ariel and design input from suspension guru Richard Hurdwell, the new design incorporates anti-dive and anti-squat geometry.
This reduces weight transfer under acceleration and braking, and maintains balance and tyre contact – particularly useful off-road to maximise grip.
Given the performance increases, a revised steering rack and new geometry is incorporated, with particular focus on caster refinement to give precision on- and off-road as well as more communicative driver feedback.
K-Tech coil-over aluminium dampers, made specifically for the Nomad 2, are fitted as standard with Eibach dual rate springs.
Ohlins TTX dampers and springs are offered as an option, featuring external piggy-back reservoirs and individual three-way adjustment for rebound, high-speed compression, and low-speed compression.
A further off-road, full race option of Bilstein two-stage dampers with remote reservoirs is also available.
All inboard and outboard suspension points are now fully sealed rubber bushes and ball joints to prevent dust and dirt ingress, reducing wear and maintenance.
The all-new standard braking system increases in size by 40 per cent over the original Nomad, due to the higher performance, with an option of the AP four-piston calipers and 290mm vented discs all round from the Ariel Atom 4.
The twin circuit system features the option of cockpit adjustability to alter front/rear brake bias on the move, as well as a hydraulic handbrake for off-road use.
Stainless braided hose for both brake and clutch hydraulic systems is standard fitment throughout.
A driver adjustable, EU-compliant ABS system with selectable road and off-road settings is available as an option. Cockpit-controlled launch and traction control, derived from the Atom 4 system, is also fitted to the Nomad 2 but calibrated for off-road use as well tarmac.
To ensure ultimate and dependable performance, whatever the use, the Nomad 2 is available with a wide range of wheels and tyres.
There are three different wheels, made specifically for the Nomad 2, ranging from the standard 16-inch alloys, through 18-inch lightweight forged, to 16-inch Beadlock options.
The wheels can be fitted with a range of tyres from road and all-terrain, to off-road and track day, covering the broad spectrum of Nomad 2 use scenarios.
Bodywork is a mixture of materials carefully selected for the Nomad 2 and its driving environment, both on- and off-road.
Contactable body components, including front end, rear covers, and mudguards, as well as header, intake and interior panels are rotationally moulded in self-coloured, toughened polyethylene.
The tough, almost unbreakable panels feature the material used in the original Nomad, the same process being used in the manufacture of road cones and boat fenders.
Other body components such as front and rear load covers are self-coloured composite with carbon fibre options, with a ‘bikini roof cover’ option for UV protection.
Immediately noticeable is the raised intake snorkel above the passenger compartment.
Designed for the often harsh environments that the Nomad operates in, it feeds clean air to intercooler and engine independently and is the result of substantial design and CFD (Computational Fluid Dynamics) work.
Carried out on the Bramble cloud-based platform the complex aerodynamics channel air from the front header rail into the air intake.
Given the Nomad’s open chassis, controlling air flow over the car meant overcoming multiple issues.
The header rail is an inverted wing that directs air towards the intake.
However, to avoid disruption from the open top, air is allowed to bleed through and underneath the header rail to keep airflow attached before entering the intake uninterrupted.
Vertical fins on top of the header channel direct cool air to the intake while warm air, exiting the radiator ducts, is forced away.
The header rail has further functions, acting as a sun visor and as a mounting point for the LED roof lights.
As well as the standard LED lighting, twin quick-release illuminated whips can be optioned at the rear of the car to give increased visibility in remote off-road environments.
An adaptable rack system at the rear of the car allows the carriage of quickly removeable, waterproof luggage boxes, up to two bicycles, loose luggage, a spare wheel, or a combination of items.
At the front a Warn Axon winch, with a load rating of 1588kg is available.
The winch nestles in a front winch bumper with a matching rear bar and full underbody panels for ultimate off-road protection in even the most severe conditions.
The interior/cockpit of the Nomad is designed to be washed out, with drain holes in the floor to let water out, and no material trim.
The two lightweight seats are a version of those first seen in the Atom 4, with supportive wings and the potential to accommodate full race harnesses with crutch straps for competition or serious off-road use.
Two widths of seats and carbon-fibre options are available.
New switchgear is all within reach of the 305mm diameter steering wheel, with two turns lock to lock, while instrumentation is via a full colour TFT display unit made for the Nomad by AIM Technologies.
Incorporating multiple scrollable menus, the instruments feature gear shift lights and indicate gear position, while there’s also provision for real time data logging and recording to a Compact Flash Card.
When reverse is selected, a rear camera automatically engages, showing the rearward view on the TFT display.
As part of the new electrical layout a PDM (Power Distribution Management) system has been used in Nomad 2, eliminating the need for multiple fuses, relays and a large fuse box.
Using programable limit channels, the PDM system continually monitors the entire car’s electrical system, powering individual circuits off and back on if necessary.
This feature is particularly useful when operating in very harsh and adverse conditions.
Nomad 2 has also raised its performance capabilities over the original car with a 0-100km/h time of 3.5 seconds and a top speed of 216km/h.
Given its high-performance potential both on- and off-road, the Nomad 2 is tuned for ultra-quick in-gear times and a broad and predictable torque range.
Nomad 2 is priced at £56,660 + VAT in the UK (AU $109,200).
Fixed price servicing is once yearly as standard, but is also dependent on mileage and competition/off-road use.
Ariel’s legendary reliability and the use of Original Equipment such as oil filters and consumables, contributes to low running costs.
The remarkable residuals that all Ariels have enjoyed, since the very first Atom, remove depreciation as the largest cost in any vehicle ownership and Ariels consistently retain most, if not all, of their original cost.
Nomad 2 will be built to order by a single technician, who takes the car from bare chassis to final test drive before signing it off and placing their personal nameplate on it.
With more than 100 options, Ariel can tailor-make each Nomad every customer’s exact requirements, ensuring no two cars will be the same.
Production of Nomad 2 is set to commence at the Ariel factory near Crewkerne in Somerset alongside the Ariel Atom 4, Atom 4R, and Dash e-bike.
For further information contact Ariel here in Oz
